Getting Started with the SRE Agent¶

Prerequisites¶

Docker
Docker Compose
OpenAI API key
Python >= 3.12
uv package manager

Environment Setup¶

Copy the example environment file:

cp .env.example .env

Update the .env file to include your OpenAI key:

OPENAI_API_KEY=your_key

Generate a master key:

python -c 'import os, base64; print(base64.b64encode(os.urandom(32)).decode())'

Update the .env file to include the master key:

REDIS_SRE_MASTER_KEY=your_key

Note: The example environment file sets default models. If you are using newer models, confirm that they are available in the LiteLLM config at /monitoring/litellm/config.yaml.

Docker Compose¶

Start the following services using Docker Compose:

docker compose up -d \
  redis redis-demo \
  sre-agent sre-worker \
  prometheus grafana \
  loki promtail

Here's what each service does:

redis: The Redis instance used by the sre-agent and sre-worker
redis-demo: The Redis instance that the sre-agent will monitor
sre-agent: The SRE agent API
sre-worker: The SRE agent worker
prometheus: Prometheus instance for metrics
grafana: Grafana instance for dashboards
loki: Loki instance for log aggregation
promtail: Promtail instance for log collection

Note: There are two Redis instances. One is used by the application itself, and the other is the Redis instance that the sre-agent will monitor.

Status Checks¶

API¶

# Root health (fast)
# Use port 8080 for Docker Compose, port 8000 for local uvicorn
curl -fsS http://localhost:8080/

# Detailed health (Redis, vector index, workers)
curl -fsS http://localhost:8080/api/v1/health | jq

# Prometheus metrics (scrape this)
curl -fsS http://localhost:8080/api/v1/metrics | head -n 20

Docker¶

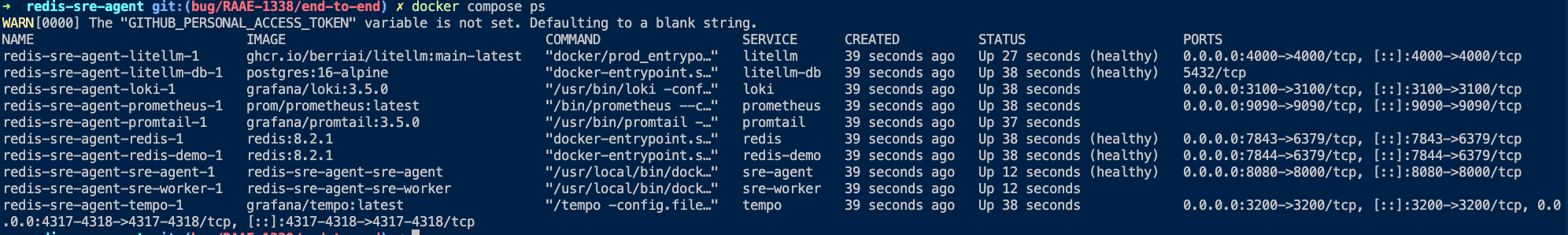

docker ps

alt text

Redis¶

Use Redis Insight or redis-cli to confirm that both Redis instances are running. By default, the internal SRE Redis is available at redis://localhost:7843 and the redis-demo at redis://localhost:7844. The internal instance (port 7843) will have Docket workers and additional keys related to the sre-agent. The redis-demo instance will be empty.

Populating the Knowledge Base and Running the UI¶

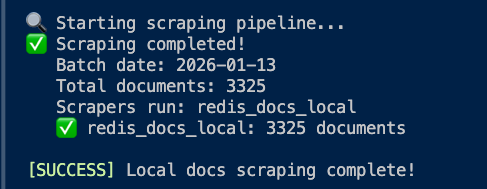

Populate the index locally (this may take a moment to generate embeddings):

uv run ./scripts/setup_redis_docs_local.sh

uv run redis-sre-agent pipeline ingest

scrape

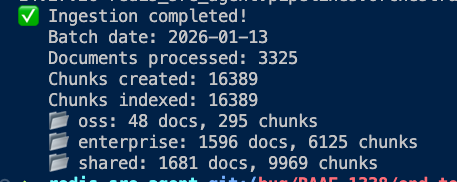

Check the index to verify that documents were loaded:

data

Run the SRE UI¶

docker compose up -d sre-ui

The UI should be available at http://localhost:3002 and look something like this:

Note: If you see connection issues, open the browser developer console and check that connections are being made to the correct ports. If the UI is attempting to connect to the wrong port, update ui/.env to include the correct port:

# In ui/.env, not the root-level .env
VITE_API_URL=http://localhost:8080/api/v1

Adding an Instance¶

Create the instance that the agent will triage. You can use the CLI (inside Docker) or the API:

Using the CLI (recommended)¶

# Run the CLI command inside the sre-agent container
docker compose exec sre-agent redis-sre-agent instance create \
  --name local-dev \
  --connection-url "redis://redis-demo:6379/0" \
  --environment development \
  --usage cache \
  --description "Primary Redis"

Using the API¶

# Create instance via API
curl -fsS -X POST http://localhost:8080/api/v1/instances \
  -H 'Content-Type: application/json' \
  -d '{
    "name": "local-dev",
    "connection_url": "redis://redis-demo:6379/0",
    "environment": "development",
    "usage": "cache",
    "description": "Primary Redis"
  }' | jq

Note: The environment field must be one of: development, staging, production, or test.

Using the UI¶

Navigate to http://localhost:3002 and use the Instances page to add a new instance.

Querying the Agent¶

You can query the agent via CLI, UI, or API.

Note: When using Docker Compose, CLI commands should be run inside the container to access Docker-internal hostnames like redis-demo. Use docker compose exec as shown below. Alternatively, for local development with uv run, update instance connection URLs to use localhost ports.

Knowledge queries (no instance required)¶

Ask general Redis questions without specifying an instance:

# Via Docker (recommended with Docker Compose)
docker compose exec sre-agent redis-sre-agent query "What are Redis eviction policies?"

# Via local uv (requires local Python environment)
uv run redis-sre-agent query "What are Redis eviction policies?"

# Explicitly use the knowledge agent
docker compose exec sre-agent redis-sre-agent query --agent knowledge "How do I configure Redis persistence?"

Instance-specific queries¶

First, list available instances to get the instance ID:

docker compose exec sre-agent redis-sre-agent instance list

Then query with the instance ID:

# Quick diagnostic (chat agent)
docker compose exec sre-agent redis-sre-agent query -r <instance-id> "What's the current memory usage?"

# Full health check (triage agent)
docker compose exec sre-agent redis-sre-agent query -r <instance-id> --agent triage "Run a full health check"

# Investigate slow queries
docker compose exec sre-agent redis-sre-agent query -r <instance-id> "Are there any slow queries?"

Multi-turn conversations¶

Continue a conversation using the thread ID returned from a previous query:

# Start a conversation
docker compose exec sre-agent redis-sre-agent query -r <instance-id> "What's the memory usage?"
# Output includes: Thread ID: abc123...

# Continue the conversation
docker compose exec sre-agent redis-sre-agent query -r <instance-id> -t abc123 "What about CPU?"

Agent selection¶

The agent is auto-selected based on your query, or specify explicitly:

Agent	Use case	Instance required
`knowledge`	General Redis questions, best practices	No
`chat`	Quick instance diagnostics	Yes
`triage`	Full health checks, deep analysis	Yes
`auto`	Let the router decide (default)	Depends on query

Summary¶

You now have a running version of the Redis SRE agent. You can ask it questions about Redis via the CLI, UI, or API, and experiment with different configurations and settings.
